Reactive Power Compensation
| Technical Details | |
| Rated, voltage | 0.4kV to 36kV |
| Rated frequency | 50/60Hz |
| Power frequency withstand voltage | Up to 95kVrms* |
| Lightning impulse voltage | Up to 170kV peak* |
| Short time current withstand capacity | Up to 31.5kA/3s (for MV) & 50kA/1s (for LV) |
| Degree of protection for enclosure | Up to IP55 |
| Design ambient temperature | Up to 55ºC |
| * Higher BIL designs are possible on request | |
Digital Dwijaya represents and supplies products of Power Economy for Reactive Power Compensation Solutions for primary and secondary distribution systems of 0.4 to 36kV voltage level.
Solutions:
- Indoor or outdoor type installations with metal enclosed and open rack designs.
- Current inrush limiting and tuning type designs with air or iron core reactors.
- Fixed or switched type of operations with automatic control.
- Type tested solutions as per IEC 60871, IEC 62271-200 & IEC 61921.
- Mechanical interlocks for safe accessibility.
- Engineered as per specific needs.
Solutions:

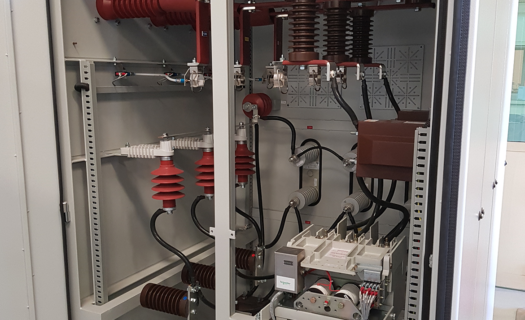

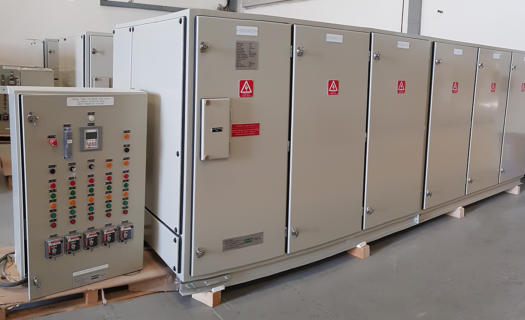

- Metal enclosed with tuning & damping reactors

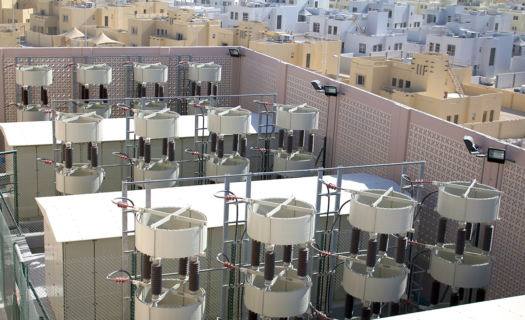

- Open rack mounted
- Pole or Pad mounted

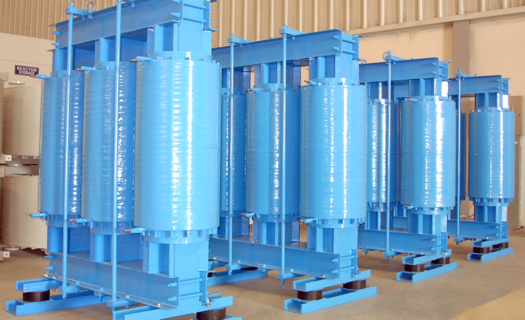

- Air & iron core reactors
